Reliable, efficient and affordable data protection for small businesses.

Purpose-built data protection appliance designed to bring backup, replication, and disaster recovery to smaller environments.

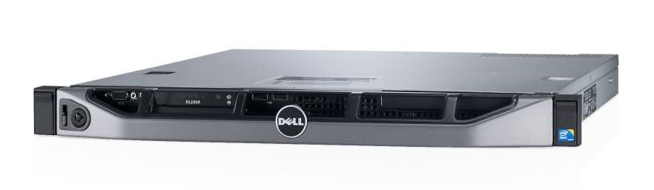

Ensure uninterrupted access to critical data with this appliance-based solution. The DL1000 provides fast backup and restores on virtual machines, physical servers and in the cloud to enable local, offsite or disaster recovery. Designed for rapid deployment, it’s built on a Dell PowerEdge server with a short, 15.5-inch depth, low power draw, quiet acoustics and fresh air cooling to make it ideal for small environments.

• Perform block-level, system-level and email backups and recoveries with an intuitive interface powered by AppAssure.
• Restore data in minutes, from a single file, message or data object, to a complete machine – and even to disparate hardware.
• Protect data on your virtual machines, or use the most popular hypervisors (VMware® vSphere™, VMware ESX®/ESXi Microsoft® Hyper-V®, and Oracle VirtualBox) as virtual standby machines for complete disaster recovery coverage.
• Do granular recovery with snapshots up to every hour.
• Reduce storage requirements by as much as 80 percent with integrated storage management capabilities.

Live recovery

Restore operations almost instantly with a recovery time objective (RTO) of minutes.

Universal recovery

Restore at any level, from a single file, message or data object, to a complete machine, even to dissimilar hardware.

Cloud archive

Archive your static data to Microsoft Azure, Amazon S3, Rackspace, or any cloud-based option on OpenStack.

Virtual standby

Continually send updates to a virtual machine that can be activated in case there’s an issue with the primary machine (optional, 3TB version only).

Incremental-forever snapshots

Snapshot data up to every 60 minutes for granular recovery point objectives (RPOs).

Change-block tracking

Track changes at the block level, backing up only the data that has changed to ensure optimal performance.

Integrated deduplication and file compression

Cut storage requirements by up to 80 percent.

Form factor

1U rack

---

Processors

DL1000 2TB – One Intel® Xeon® processor E3-1270 v3 product family
DL1000 3TB – One Intel® Xeon® processor E3-1280 v3 product family
DL1000 3TB/2VM – One Intel® Xeon® processor E3-1280 v3 product family

---

Chipset

Intel C222

---

Hard drives

DL1000 2TB – 2 x 3.5” 3TB SATA 7.2K (RAID 1)
DL1000 2TB – 2 x 3.5” 4TB SATA 7.2K (RAID 1)
DL1000 3TB/2VM – 2 x 3.5” 4TB SATA 7.2K (RAID 1)

---

Memory

DL1000 2TB – 16GB DDR3 UDIMM with ECC
DL1000 3TB – 16GB DDR3 UDIMM with ECC
DL1000 3TB/2VM – 32GB DDR3 UDIMM with ECC

---

Storage controller

PERC H310

---

Embedded NIC

Broadcom® 5720 dual-port 1Gb LOM

---

External ports for export and Import

2 rear USB 3.0
1 rear eSATA 3.0

---

Remote management

iDRAC7 Express

---

Data protection software

Dell AppAssure 5.4

---

Operating system

DL1000 2TB : Windows Server 2012 R2 Foundation
DL1000 3TB : Windows Server 2012 R2 Foundation
DL1000 3TB/2VM : Windows Server 2012 R2 Standard

---

Rack support

ReadyRails™ static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for tooled mounting in 2-post racks.

---

Maximum backup capacity

DL1000 2TB – 2TB
DL1000 3TB – 3TB
DL1000 3TB/2VM – 3TB

---

Power supply

Non-redundant, 250W (80+ Silver); auto-ranging (100V~240V). ENERGY STAR® compliant.

---

Dimensions

H: 1.66” (42.4 mm) W: 17.09” (434 mm) D: 15.52” (394.3 mm) (without ear/bezel)

---

Weight

17.76 lb. (8.058 kg) maximum

---

Management

AppAssure Appliance Configuration Wizard, iDRAC7 Express for remote management, AppAssure Central Management Console

---

AppAssure software protection
DL1000 (All Editions)
Data protection features

Inline block level deduplication, snapshots, Live Recovery®, AppAssure Cloud Connector for Microsoft Azure, Amazon EC2, OpenStack and RackSpace. The DL1000 3TB/2VM includes two standby virtual machines for disaster recovery

---

Licensing

The DL1000 backup and recovery appliances are licensed-based on the back-end compressed and deduplicated stored data capacity

---

Operating systems supported distributions

Microsoft® Windows® XP, Vista, 7 and 8.x
Microsoft® Windows Server 2003, 2008, 2008 R2, 2012 (all versions)
Red Hat® Enterprise Linux® (RHEL) 6.3 (32- and 64-bit) and 6.4 CentOS® 6.3 (32 and 64 bit) , 6.4, 6.5
Ubuntu® 12.04 LTS (32 and 64 bit) and 13.04
SuSE Linux® Enterprise Server 11 SP2 (32 and 64 bit) and SuSE Linux Enterprise Server 11 SP3

---

Virtualization platforms

Microsoft® Hyper-V®
Oracle VirtualBox
VMware® ESXi®
VMware® Workstation

---

Application support

Microsoft Exchange (Verified Recovery not included):

• Microsoft Exchange 2007 SP1 Rollup 5 or later
• Microsoft Exchange 2010
• Microsoft Exchange 2013

Microsoft SQL Server (Verified Recovery not included):

• SQL Server 2005 or higher
