Designed for flexibility and performance
Accelerate the migration to higher performance with Dell Networking S-Series 1/10/40GbE switches.
Legend: S — Standard, N — Not Available
| Performance | S4810 | S4820T | S5000 | S6000 |
|---|---|---|---|---|
| MAC Address | 128,000 | 128,000 | 128,000 | 160,000 |
| IPv4 routes | 16,000 | 16,000 | 16,000 | 16,000 |
| IPv6 routes | 8K (shared CAM space with IPv4) | 8K (shared CAM space with IPv4) | 8K (shared CAM space with IPv4) | 8K (shared CAM space with IPv4) |
| Switching fabric capacity | 1.28 Tbps (full-duplex) 640 Gbps (half-duplex) |
1.28 Tbps (full-duplex) 640 Gbps (half-duplex) |
1.28 Tbps (full-duplex) 640 Gbps (half-duplex) |
2.56 Tbps (full-duplex) 1.28 Tbps (half-duplex) |
| User traffic capacity | 960 Mpps | 960 Mpps | 960 Mpps | 1462 Mpps |
| Link aggregation | 8 links per group, 128 groups per stack | 8 links per group, 128 groups per stack | 8 links per group, 128 groups per stack | 8 links per group, 128 groups per stack |
| Stacking capacity | 160Gbps | 160Gbps | 160Gbps | 160Gbps |
| Queues per port | 4 queues | 4 queues | 4 queues | 8 queues |
| VLANs | 4,000 | 4,000 | 4,000 | 4,000 |
| Line-rate Layer 2 switching — All protocols, including IPv4 and IPv6 | S | S | S | S |
| Line-rate Layer 3 routing — IPv4 and IPv6 | S | S | S | S |
| LAG load balancing — Based on Layer 2, IPv4 or IPv6 headers | S | S | S | S |
| Switching latency | 800ns | 3.3us | 800ns | 600ns |
| Packet buffer memory | 9MB | 9MB | 9MB | 12MB |
| CPU memory | 2GB | 2GB | 2GB | 4GB |
| IPv4 host table size | 4,000 | 8,000 | 8,000 | 48,000 |
| IPv6 host table size | 4,000 | 8,000 | 8,000 | 32,000 |
| IPv4 Multicast table size | 4,000 | 8,000 | 8,000 | 64,000 |
| Availability | S4810 | S4820T | S5000 | S6000 |
| Ring stacking topology with dynamic master election | S | S | S | N |
| Dual modular slots with up to four 10 GbE ports | S | S | S | N |
| Link aggregation across stack members | S | S | S | S |
| Built-in power redundancy | S | S | S | S |

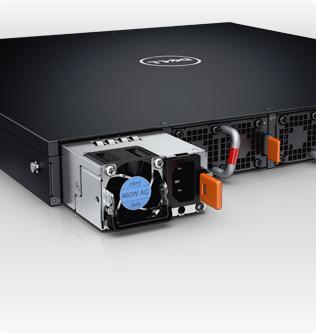

| Hot swappable redundant AC or DC power | S | S | S | S |
| Hot swappable redundant fans | S | S | S | S |
| Chassis | S4810 | S4820T | S5000 | S6000 |
| Line-rate ports | 48 - 10 Gigabit Ethernet SFP+ ports | 48 - 10 GBASE-T ports | 32 - 40 Gigabit Ethernet QSFP+ ports or up to 96 - 10 GbE SFP+ & 8 - 40GbE ports (breakout mode) | |
| SFP Ports | 4 - 40 Gigabit Ethernet QSFP+ ports | 4 - 40 Gigabit Ethernet QSFP+ ports | 4 - 40 Gigabit Ethernet QSFP+ ports | 32 - 40 Gigabit Ethernet QSFP+ ports |
| 1 RJ45 console/management port with RS232 signaling | S | S | S | S |
| 1 RJ45 Ethernet management port | N | N | N | S |
| USB Ports | N | N | S | S |
| 2 line-rate ports 10 Gigabit Ethernet XFP Modules | N | N | N | N |
| 2 line-rate ports 10 Gigabit Ethernet CX4 Modules | N | N | N | N |
| 2 line-rate ports 12 Gigabit Stacking Modules | N | N | N | N |
| 2 line-rate ports 10 Gigabit Ethernet SFP+ Modules | N | N | N | N |
| 1 line-rate port 24 Gigabit Stacking Modules | N | N | N | N |
| Dimensions | S4810 | S4820T | S5000 | S6000 |
| Size | 1 RU, 1.73 h x 17.32 w x 18.11" d (4.4 h x 44 w x 46 cm d) | 1 RU, 1.71 h x 17.09 w x 18.11" d (4.35 h x 43.4 w x 46 cm d) | 1RU, 1.73 h x 17.32 w x 28" d (4.4 h x 44 w x 46 cm d) | RU, 1.73 h x 17.32 w x 18.11" d (4.39 h x 43.99 w x 46 cm d) |
| Weight | 14.39 lbs (6.54 kg) | 21.7 lbs (9.86 kg) | 34 lb (15.42 kg) | 14.41 lbs (6.54 kg) |
| ISO 7779 A-weighted sound pressure level | 59.6 dBA at 73.4°F (23°C) | 65 dBA at 78.8°F (26°C) | 59.6 dBA at 73.4°F (23°C) | 20 dBA at 73.4°F (23°C) |
| Environmental | S4810 | S4820T | S5000 | S6000 |
| Operating temperature: 32° to 122°F (0° to 50°C) |
32° to 104°F (0° to 40°C) | 32° to 113°F (0° to 45°C) | 32° to 104°F (0° to 40°C) | 32° to 113°F (0° to 45°C) |
| Operating humidity: 10 to 85% (RH), noncondensing |
10 to 85% (RH), noncondensing | 10 to 90% (RH), noncondensing | 10 to 85% (RH), noncondensing | 10 to 90% (RH), noncondensing |
| Storage temperature: –40° to 158°F (–40° to 70°C) |
S | S | S | S |
| Storage humidity: 5 to 95% (RH), noncondensing |
S | S | S | S |
| Power | S4810 | S4820T | S5000 | S6000 |
| Power supply | 100–240 VAC 50/60 Hz | 100–240 VAC 50/60 Hz | 100–240 VAC 50/60 Hz -48 to -60 VDC |
100–240 VAC 50/60 Hz |
| Max. thermal output: | 955.36 BTU/h | 1433 BTU/h | 1878 BTU/h | 1265.9 BTU/h |
| Max. current draw per system | 2 A at 100/120 VAC, 1 A at 200/240 VAC | 4.2A at 100/120VAC, 2.1A at 200/240VAC, 1.04A at 40.5VDC, 7A at 60VDC | 7A at 100/120VAC, 3.5A at 200/240VAC, 15.2A at -46VDC, 11.7A at -60VDC | 3.8A at 100/120 VAC, 1.6A at 200/240 VAC |
| Max. power consumption | 350 Watts | 460 Watts | 550 Watts | 371 Watts |
| Max. PoE power | N | N | N | N |
| Reliability | N | N | N | N |
| Safety | S4810 | S4820T | S5000 | S6000 |
| EN 60825-1 Safety of Laser Products Part 1: Equipment | S | S | S | S |
| EN 60825-2 Safety of Laser Products Part 2: Safety of | S | S | S | S |
| EN 60950-1, Second Edition | S | S | S | S |
| Equipment Classification Requirements and User's Guide | S | S | S | S |
| FDA Regulation 21 CFR 1040.10 and 1040.11 | S | S | S | S |
| IEC 60950-1, Second Edition Including all National | S | S | S | S |
| Optical Fibre Communication Systems | S | S | S | S |
| UL/CSA 60950-1, Second Edition | S | S | S | S |
| Emissions | S4810 | S4820T | S5000 | S6000 |
| Australia/New Zealand: AS/NZS CISPR 22: 2009, Class A | S | S | S | S |
| Canada: ICES-003, Issue-4, Class A | S | S | S | S |
| Europe: EN 55022: 2006+A1:2007 (CISPR 22: 2006), Class A | S | S | S | S |
| Japan: VCCI V3/2009 Class A | S | S | S | S |
| USA: FCC CFR 47 Part 15, Subpart B:2009, Class A | S | S | S | S |
| Immunity | S4810 | S4820T | S5000 | S6000 |
| EN 300 386 V1.4.1: 2008 EMC for Network Equipment | S | S | S | S |
| EN 55024: 1998 + A1: 2001 + A2: 2003 | S | S | S | S |
| EN 61000-3-2: Harmonic Current Emissions | S | S | S | S |
| EN 61000-3-3:Voltage Fluctuations and Flicker | S | S | S | S |
| EN 61000-4-2: ESD | S | S | S | S |
| EN 61000-4-3: Radiated Immunity | S | S | S | S |
| EN 61000-4-4: EFT | S | S | S | S |
| EN 61000-4-5: Surge | S | S | S | S |
| EN 61000-4-6: Low Frequency Conducted Immunity | S | S | S | S |
| RoHS | S4810 | S4820T | S5000 | S6000 |
| All S Series components are EU RoHS compliant. | S | S | S | S |
Legend: S — Standard, N — Not Available
| Performance | S55 | S60 |
|---|---|---|
| MAC Address | 32K | 32K |
| IPv4 routes | 16,000 | 16,000 |
| IPv6 routes | 8,000 | 8,000 |
| Switching fabric capacity | 192 Gbps | 176 Gbps |
| User traffic capacity | 144 Mpps | 132 Mpps |
| Link aggregation | 8 links per group, 128 groups per stack | 8 links per group, 128 groups per stack |
| Stacking capacity | 48 Gbps per stack member | 96 Gbps per stack member |
| Queues per port | 4 queues | 4 queues |
| VLANs with 4096 tag value support | 1024 | 1024 |
| Line-rate Layer 2 switching — All protocols, including IPv4 and IPv6 | S | S |
| Line-rate Layer 3 routing — IPv4 and IPv6 | S | S |
| LAG load balancing — Based on Layer 2, IPv4 or IPv6 headers | S | S |
| Switching latency | <5 µs for 64 byte frames | <9 µs for 64 byte frames |
| Packet buffer memory | 4MB | 1.25GB |
| CPU memory | 2GB | 2GB |
| IPv4 host table size | N/A | N/A |
| IPv6 host table size | N/A | N/A |
| IPv4 Multicast table size | N/A | N/A |
| Availability | S55 | S60 |
| Ring stacking topology with dynamic master election | S | S |
| Dual modular slots with up to four 10 GbE ports | S | S |
| Link aggregation across stack members | S | S |
| Built-in power redundancy | S | S |
| Hot swappable redundant AC or DC power | S | S |
| Hot swappable redundant fans | N | S |
| Dimensions | S55 | S60 |
| Size | 1 RU, 1.7 h x 17.32 w x 18.06" d (4.3 h x 44 w x 45.87 cm d) | 1 RU, 1.7 h x 17.32 w x 20.5" d (4.3 h x 44 w x 52.07 cm d) |
| Weight | 14.39 lbs (6.54 kg) | 14.39 lbs (6.54 kg) |
| ISO 7779 A-weighted sound pressure level | 59.6 dBA at 73.4°F (23°C) | 59.6 dBA at 73.4°F (23°C) |
| Environmental | S55 | S60 |
| Operating temperature: | S | S |
| 32° to 122°F (0° to 50°C) | S | S |
| Operating humidity: | S | S |
| 10 to 85% (RH), noncondensing | S | S |
| Storage temperature: | S | S |
| –40° to 158°F (–40° to 70°C) | S | S |
| Storage humidity: | S | S |
| 5 to 95% (RH), noncondensing | S | S |
| Power | S55 | S60 |
| Power supply | 100–240 VAC 50/60 Hz, –44 to -60 VDC | 100–240 VAC 50/60 Hz, –44 to -60 VDC |
| Max. thermal output: | 443 BTU/h | 531 BTU/h |
| Max. current draw per system | 2 A at 100/120 VAC, 1 A at 200/240 VAC, 3.6 A at -48 VDC | 2 A at 100/120 VAC, 1 A at 200/240 VAC, 3.6 A at -48 VDC |
| Max. power consumption | 130 W | N |
| Max. PoE power | N | N |
| Reliability | MTBF 169,315 hours | MTBF 169,315 hours |
| Safety | S55 | S60 |
| EN 60825-1 Safety of Laser Products Part 1: Equipment | S | S |
| EN 60825-2 Safety of Laser Products Part 2: Safety of | S | S |
| EN 60950-1, Second Edition | S | S |
| Equipment Classification Requirements and User's Guide | N | N |
| FDA Regulation 21 CFR 1040.10 and 1040.11 | S | S |
| IEC 60950-1, Second Edition Including all National | S | S |
| Optical Fibre Communication Systems | N | N |
| UL/CSA 60950-1, Second Edition | S | S |
| Emissions | S55 | S60 |
| Australia/New Zealand: AS/NZS CISPR 22: 2006, Class A | S | S |
| Canada: ICES-003, Issue-4, Class A | S | S |
| Europe: EN 55022: 2006 (CISPR 22: 2006), Class A | S | S |
| Japan: VCCI V3/2007.04 Class A | S | S |
| USA: FCC CFR 47 Part 15, Subpart B, Class A | S | S |
| Immunity | S55 | S60 |
| EN 300 386 V1.3.3: 2005 EMC for Network Equipment | S | S |
| EN 55024: 1998 + A1: 2001 + A2: 2003 | S | S |
| EN 61000-3-2: Harmonic Current Emissions | S | S |
| EN 61000-3-3:Voltage Fluctuations and Flicker | S | S |
| EN 61000-4-2: ESD | S | S |
| EN 61000-4-3: Radiated Immunity | S | S |
| EN 61000-4-4: EFT | S | S |
| EN 61000-4-5: Surge | S | S |
| EN 61000-4-6: Low Frequency Conducted Immunity | S | S |
| RoHS | S55 | S60 |
| All S Series components are EU RoHS compliant. | S | S |

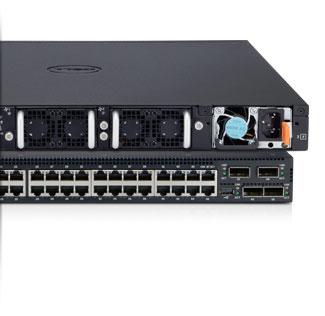

Designed for performance
Dell Networking switching technology enables outstanding productivity for virtualized data center and cloud computing environments. The wide range of S-Series switches includes the S6000 10/40G high-density top-of-rack (ToR) switch, a compact 1RU fixed switch with full L2/L3 capability, including Data Center Bridging (DCB) and Virtual Link Trunking (VLT).

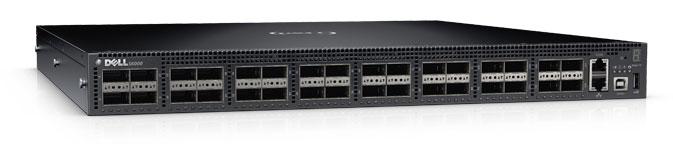

- Added flexibility to configure 32 x 40GbE ports or 96 x 10GbE plus 8 x 40GbE ports
- Low latency with superb performance and high density with hardware and software redundancy
- DCB for reliable, high-performance Ethernet in large data center networks
- Streamlined connectivity and workflow operation across physical and virtual resources with multi-tenancy capabilities
- Support for Network Virtualization with VXLAN Gateway hardware support integrated into the switch
- Integrated automation, scripting and programmatic management for enhanced network flexibility in virtualized environments
Developed for flexibility
The Dell Networking S-Series switches offer a family of products that enable you to find the ideal solution for your specific needs.
- Deliver versatility with line-rate performance and port densities from 48 x 1/10Gb Base T line-rate ports in the S4820T switches to 32 x 40GbE ports in the S6000
- Scale quickly with efficient stacking offered in many of the S-Series models, including S4810/S4820T/S5000 (10/40Gb) platforms
- Powered by our industry-hardened and feature-rich operating system for maximum dependability and uptime
- Full support for iSCSI storage area networks including support for DCB
Built for cost-effective deployment
Select S-Series Managed 10/40 Gb switches are supported with the Dell Open Automation Framework, a suite of interrelated network management tools that can be used together or independently to provide a flexible, available and manageable network while helping reduce operational expenses.
The Open Automation Framework takes full advantage of Dell FTOS software capabilities to bring network automation into virtual data center environments. This helps the S-Series switches efficiently respond and adapt to changes in application requirements.
