FortiGate 500-300 Series

Next-Gen Firewalls (NGFW) - FortiGate 500-300 Series


The FortiGate 500-300 series delivers up to 5 Gbps of Next Generation Threat protection and 16 Gbps of Firewall throughput, ideal for a Next Generation Firewall (NGFW) at the enterprise branch or midsize business. (Certain models include the option to expand ports, storage and performance.) As a result, these midrange FortiGate models deliver 5 times the next gen performance compared to other leading NGFWs- enabling organizations to increase protection and consolidate devices.

Powered by FortiOS, these appliances provide visibility into and control over more than 3000 applications, top rated intrusion prevention and antimalware and actionable reporting. Organizations can optionally add Web Filtering, Advanced Threat Protection or Strong Authentication to extend their FortiGate next generation firewall to consolidate a Secure Web Gateway (SWG) or address the challenges posed by Advanced Persistent Threats (APTs) and Bring-Your-Own Device (BYOD) programs.

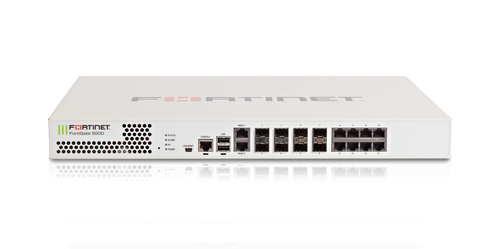

Product Name FortiGate-500D FortiGate-400D FortiGate-300C FortiGate-300D
Firewall Throughput 1518 Bytes 16 Gbps 16 Gbps 8 Gbps 8 Gbps
Firewall Throughput 512 Bytes 16 Gbps 16 Gbps 8 Gbps 8 Gbps
Firewall Throughput 64 Bytes 16 Gbps 16 Gbps 8 Gbps 8 Gbps
Firewall Max Concurrent Session 6 Million 5.5 Million 2 M 6 Million
Firewall New Sessions per second 280,000 200,000 50,000 200,000
IPS Throughput 4.7 Gbps 2.8 Gbps 1.4 Gbps 2.8 Gbps
IPSec Throughput 512 Byte Packet 14 Gbps 14 Gbps 4.5 Gbps 7 Gbps
Antivirus Throughput (Proxy) 1.7 Gbps 1.4 Gbps 200 Mbps 1.4 Gbps
Total Network Interfaces 8 x 10/100/1000 RJ45, 8 x SFP, 2x Management. 8 x 10/100/1000 RJ45, 8 x SFP, 2x Management. 8 x 10/100/1000 FortiASIC-accelerated port, 2 x 10/100/1000 port 4 x 10/100/1000 RJ45, 4 x SFP, 2x Management.
Total Storage Capacity 120GB MLC N/A 32 GB (MLC Nand flash) 120GB MLC
