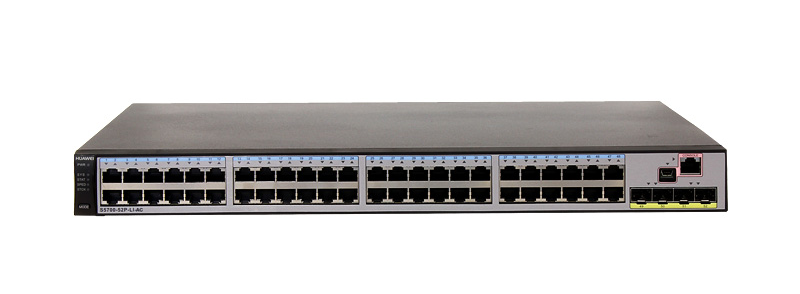

S5700-LI Series Simplified Gigabit Switches

Super-flexible, easy-to-manage platform that lets you optimize L3 switching capacity and downstream port bandwidth from 100 Mbit/s to 1 Gbit/s in a highly reliable and energy-efficient switch.

S5700-LI Series Switches support Advanced Hibernation Management (AHM) for dynamic power management, intelligent stack (iStack) clustering for easy scalability, and comprehensive security and user authentication features. Additional options include lithium-oxide battery backup, CSFP interfaces, and zero-touch remote maintenance, as well as models customized to meet specialized requirements.

Ideal for use as an access or aggregation switch in a campus network, or to provide Gigabit access in an Internet data center.


Features


Choose Huawei S5700-LI Series Simplified Gigabit Switches to provide energy-saving and cost-effective gigabit to the desktop solution

  • Device sleep mode provides three energy-saving states — standard, basic, and deep
  • Industry-first built-in batteries with visual battery status management; ideal for environments facing frequent power failures at the access layer
  • CSFP models support downlink CSFP ports, providing 2 Gbit/s bi-directional bandwidth; 24 downlink CSFP ports provide access capacity equivalent to 48 SFP ports
  • Models with front power sockets can be installed in 300 mm depth cabinet; maintainable through the front panel



Specifications

Specifications S5700(-X)-LI Series
S5700-LI-CSFP
S5701-X-LI Series
S5700S-LI Series S5700-LI-BAT Series
MAC Address Table 16K
VLAN 4K
Ring Network Protection
  • RRPP ring topology and RRPP multi-instance
  • Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
  • Smart Ethernet Protection (SEP)
  • STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
  • BPDU protection, root protection, and loop protection
IP Routing Static route
Multicast
  • IGMPv1/v2/v3 snooping and IGMP fast leave
  • Multicast forwarding in a VLAN and multicast replication between VLANs
  • Multicast load balancing among member ports of a trunk
  • Controllable multicast
  • Port-based multicast traffic statistics
Security
  • Hierarchical user management and password protection
  • AAA authentication
  • Limit on the number of learned MAC addresses
  • NAC
  • DHCP relay, DHCP server, DHCP snooping, DHCP security, and DHCP SAVI
  • Port isolation, port security, and sticky MAC
Surge Protection Surge protection capability of service ports: 6 kV
Battery Management Web-based management system used to check the battery status and manage the battery (supported by battery LAN switches)
Interoperability
  • VBST (Compatible with PVST/PVST+/RPVST)
  • LNP (Similar to DTP)
  • VCMP (Similar to VTP)
