S5700-HI Series Advanced Gigabit Switches

Highly scalable gigabit access for terminals in enterprise campus networks; also ideal for resilient server support and aggregation in large-scale data centers. 40 Gbit/s upstream ports configurable to 10 Gbit/s for flexible networking.

Advanced hardware design and Huawei’s Versatile Routing Platform (VRP) software provide resilient, manageable operation; comprehensive onboard security features protect against cyberattacks.

S5700-HI models support Energy Efficient Ethernet (EEE), port energy detection, and device hibernation technologies, greatly reducing energy consumption and noise without compromising performance and stability.



Features


Choose Huawei S5700 Series Switches to provide Gbit/s access for wired and wireless devices throughout the enterprise network

  • Smart Link and Rapid Ring Protection Protocol (RRPP) provide load balancing among links, optimizing bandwidth usage
  • NetStream and sFlow support provide dynamic traffic analysis and management, simplifying O&M
  • Multiple fault-detection mechanisms: both hardware- and software-based Bi-directional Forwarding Detection (BFD) and Operations, Administration, and Maintenance (OAM) features
  • Combine multiple S5700-HI switches into a single stack with Huawei’s intelligent iStack technology



Specifications

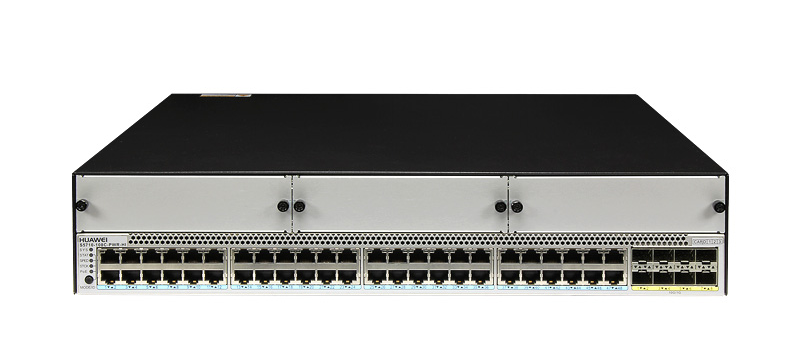

Specifications S5700-28C-HI S5700-28C-HI-24S S5710-108C-PWR-HI
Fixed Ports 24 x 10/100/1000 Base-T 24 x 10/100/1000 Base-X 48 x 10/100/1000 Base-T, and 8 x 10 GE SFP+
Extended Slots One extended slot:
  • Optional sub-card 1: 2 x 10 GE SFP+
  • Optional sub-card 2: 4 x 10 GE SFP+
  • Optional sub-card 3: 4 x 1000 BASE-X
Three front extended slots:
  • Optional subcard 1: 16 x 10/100/1000 BASE-T
  • Optional subcard 2: 16 x 1000 BASE-X
  • One rear extended slot:
  • Optional subcard 1: 4 x 10 GE SFP+ (no GE auto adaption)
  • Optional subcard 2: 4 x 40 GE QSFP+
MAC Address Table 32K 456K
Ring Network Protection
  • RRPP ring topology and RRPP multi-instance
  • Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
  • G.8032 Ethernet Ring Protection Switching (ERPS)
  • STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
  • BPDU protection, root protection, and loop protection
IP Routing Static route, RIP v1, RIP v2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy
MPLS
  • MPLS L3VPN
  • MPLS L2VPN (VPWS/VPLS)
  • MPLS-TE
  • MPLS QoS
OAM Hardware OAM:
  • EFM OAM
  • CFM OAM
  • Y.1731 performance test
  • Hardware-level delay and jitter detection
Software OAM:
  • EFM OAM
  • CFM OAM
  • Y.1731 performance test
Interoperability
  • VBST (compatible with PVST/PVST+/RPVST)
  • LNP (similar to DTP)
  • VCMP (similar to VTP)
