S6700 Series 10 GE Switches

High-performance, super-reliable 10 GE switches with comprehensive Quality of Service (QoS) and security capabilities, ideal for use as access switches in large-scale data centers and core switches in campus networks.

Advanced switching architecture and line-card buffering ensure smooth, sustained performance; Huawei’s intelligent iStack virtualization technology enables both simplified management and easy expandability. Tight integration with Huawei’s eSight NMS for fast and efficient provisioning, reconfiguring, and administration.

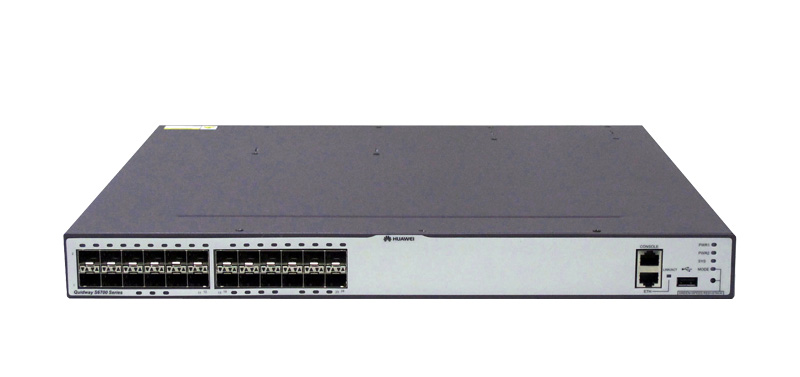

S6700 Series switches are available in 24-port and 48-port S6700-EI models, for resilient IPv4 and smooth migration to IPv6 networking.


Features


Need rock-solid 10 GE switching? Choose Huawei‘s S6700 Series core and access switches for resilient performance and carrier-grade reliability

  • Model S6700-24-EI supports up to 24 x 10 GE ports, S6700-48-EI supports up to 48 x 10 GE line cards
  • Smart Ethernet Protection (SEP), ERPS, and VRRP support (G.8032) let you configure route redundancy for extra reliability
  • Configurable security measures include anti-DoS protection, DHCP snooping, and IP Source Guard (IPSG)
  • Enhanced security control and QoS capabilities; multiple VPN services



Specifications

Specifications S6700-24-EI S6700-48-EI
Port 24 x GE SFP/10 GE SFP+ ports 48 x GE SFP/10 GE SFP+ ports
IPv4 Routing
  • Static routing, RIPv1, RIPv2, ECMP, and URPF
  • OSPF, IS-IS, and BGP
  • VRRP
  • Policy-based routing
  • Routing policy
Multicast
  • Static Layer 2 multicast MAC address
  • MAC-based multicast forwarding
  • IGMP snooping and IGMP fast leave
  • Multicast VLAN
  • MLD snooping
  • IGMP proxy
  • Controllable multicast
  • Port-based multicast traffic statistics
  • IGMP v1/v2/v3
  • PIM-SM, PIM-DM, and PIM-SSM
  • MSDP
MPLS Features
  • MPLS L3VPN
  • MPLS L2VPN (VPWS/VPLS)
  • MPLS-TE
  • MPLS QoS
QoS/ACL
  • Rate limiting on packets sent and received by an interface
  • Packet redirection
  • Port-based traffic policing and two-rate, three-color CAR
  • Eight queues on each port
  • WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
  • Re-marking of the 802.1p priority and DSCP priority
  • Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID
  • Rate limiting in each queue and traffic shaping on ports
Security
  • DoS attack defense, ARP attack defense, and ICMP attack defense
  • 802.1x authentication and limit on the number of users on an interface
  • AAA authentication, RADIUS authentication, and TACACS authentication
  • SSH v2.0
  • Hypertext Transfer Protocol Secure (HTTPS)
  • CPU defense
  • Blacklist and whitelist
Interoperability
  • VBST (Compatible with PVST/PVST+/RPVST)
  • LNP (Similar to DTP)
  • VCMP (Similar to VTP)
