IDS2000 Series Modular Data Center

A compact, modular data center that fits all subsystems in one room — just what the IT administrator ordered. Huawei’s next-generation modular data center solution includes cabinets, power supply and distribution, cooling, cabling, and management software. The design supports single- or dual-row deployment for improved space utilization, airtight or open isles, and cold or hot isles. The maximum power of a single cabinet is 21 kW.

The result? Scalability, low CAPEX, low PUE, fast site installation, and low-cost remote management.

Features


Efficient modular design of Huawei’s IDS2000 Series Modular Data Centers enables quick deployment with high scalability

  • The modular design fits your company’s requirements — reducing initial CAPEX by as much as a 30%
  • Highly efficient components and air flow management lower PUE below 1.5
  • Prefabricated and standard interfaces make one-week installations possible, a 50% improvement in normal deployments
  • Highly adaptable single- or dual-row cabinets optimize space utilization; and the modular solution can be fitted easily to a concrete or raised floor, requiring a net height of only 2.6m



Specifications

Item IDS2000
Dimensions
  • 1,200 mm single-row cold/hot aisle containment: L x 2,400 mm x 2,350 mm (L ≤ 10,800 mm)

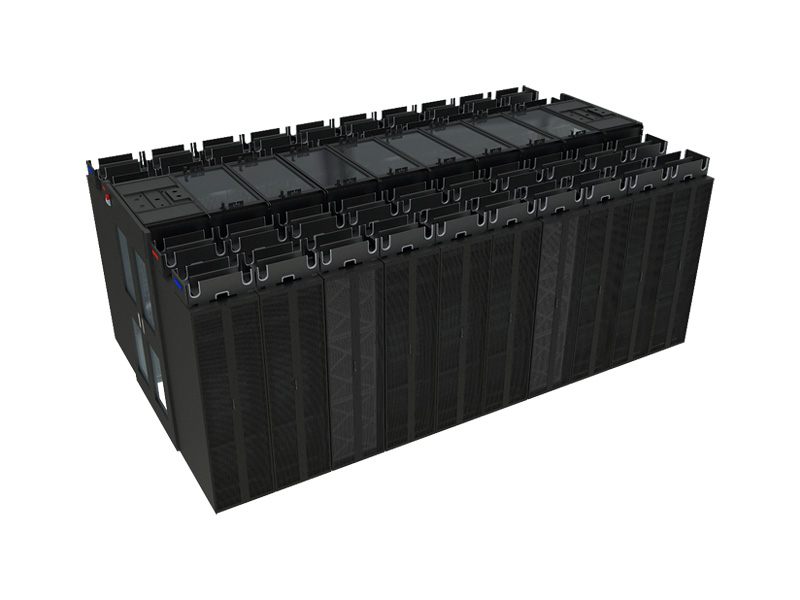

  • Dual-row cold/hot aisle containment: L x 3,600 mm x 2,350 mm (L ≤ 14,400 mm)
Number of IT Cabinets in a Single Module Single-row: ≤24; dual-row: ≤48
Input Power
  • 208V or 220V (three-phase, 60 Hz)
  • 380V, 400V, or 415V (three-phase, 50 Hz or 60 Hz)
  • 440V, 460V, or 480V (three-phase, 60 Hz)
IT Power Consumption
  • 208V: 1 kVA to 100 kVA
  • 380V: 1 kVA to 200 kVA
  • 480V: 1 kVA or 200 kVA
Power Density of a Single Cabinet 21 kW/Rack
Reliability Tier II or Tier III (up to Tier IV)
Altitude Up to1,000m (derated above 1,000m)
Installation Method Installed on concrete or raised floor

Download Full Spec
